Aircrafts

Airmark Aviation equips with B737-200F, B737-300F, B737-400F, and B737-800F aircraft models



B737-200F

A short-range airliner introduced in 1969, the B737-200 became the most utilized member of the first generation of the B737 family. It is a stretched version of the original 737-100. Production halted in 1988 after 1144 aircraft were built, with approximately 900 still in service by 1999. Military variants include the CT-43 and VC96.
PAYLOAD 17000 KG / 37478 lbs
HOLD SIZE (WxH) 318x218 CM / 125"x86"
DOOR SIZE (WxH) 340x219 CM / 134"x86"
TOTAL LOAD VOLUME 77 m³ / 2719'³
MAXIMUM RANGE 2240 KM / 1391 Miles
RUNWAY REQUIREMENT 1900 M
Pallet Configuration
7 x 88" x 125"
Available Aircraft
AC Reg Nbr. Max Pallet Positions Max Payload (kg) Max Volume (cubic meters)
RPC-4737 7 12000 84
RPC-4753 7 12000 84

B737-300F

The Boeing B737-300F model incorporates various enhancements to boost capacity and efficiency, such as an extended fuselage, aerodynamic refinements, and high-performance turbofan engines. It is proficient in transporting both oversized and container freight across medium-haul distances.
PAYLOAD 19275 KG / 42494 lbs
HOLD SIZE (LxWxH) 2324x317x214 CM / 914"x124"x84"
DOOR SIZE (WxH) 348x137 CM / 137"x54"
PAYLOAD 19275 KG / 42494 lbs
TOTAL LOAD VOLUME 130 m³ / 4590'³
MAXIMUM RANGE 2929 KM / 1820 Miles
RUNWAY REQUIREMENT 1850 M
Pallet Configuration
8 x 88" x 125" plus 1 - 125" x 88"
Available Aircraft
AC Reg Nbr. Max Pallet Positions Max Payload (kg) Max Volume (cubic meters)
PK-MYB 8 16354 84
PK-MYC 8 16275 96
PK-MYD 8 15913 84
PK-MYE 8.5 16500 96

B737-400F

The B737-400, an enhanced iteration of the 300 model, boasts an extended fuselage and enhanced engine power, resulting in a greater cargo capacity for medium-haul flights.
PAYLOAD 20412 KG / 45000 lbs
HOLD SIZE (LxWxH) 2440x319x214 CM / 960"x125"x84"
DOOR SIZE (WxH) 356x213 CM / 140"x83"
TOTAL LOAD VOLUME 156 m³ / 5509'³
MAXIMUM RANGE 3850 KM / 2392 Miles
RUNWAY REQUIREMENT 2286 M
Pallet Configuration
9 x 88" x 125" plus 1 - 125" x 88"
Available Aircraft
AC Reg Nbr. Max Pallet Positions Max Payload (kg) Max Volume (cubic meters)
PK-MYF 10 18000 120
PK-MYJ 10 17998 120
PK-MYV 10 18646 120

B737-800F

The Boeing 737-800F stands as a contemporary marvel in air cargo, delivering exceptional efficiency and adaptability for short to medium-haul journeys.
PAYLOAD 23500 KG / 51800 lbs
HOLD SIZE (LxWxH) please advice 2324x317x214 CM / 914"x124"x84"
DOOR SIZE (WxH) 376x215 CM / 148"x84.6"
TOTAL LOAD VOLUME 137 m³ / 4840'³
MAXIMUM RANGE 4075 KM / 2532 Miles
RUNWAY REQUIREMENT 1830 M

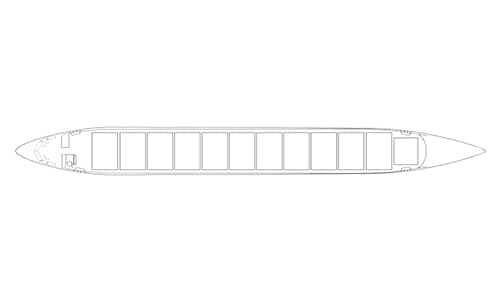

Pallet Configuration
11 x 88" x 125" plus 1 - 53" x 88"
Available Aircraft
AC Reg Nbr. Max Pallet Positions Max Payload (kg) Max Volume (cubic meters)
PK-MYI 11 21838 132
